IS PROUD TO BRING YOU THIS INCREDIBLE CROSS COUNTRY HAULER, BACKCOUNTRY WORKHORSE AND ALL AROUND FAMILY WAGON FOR YOU TO ENjOY.
Elevate Your flying Experience

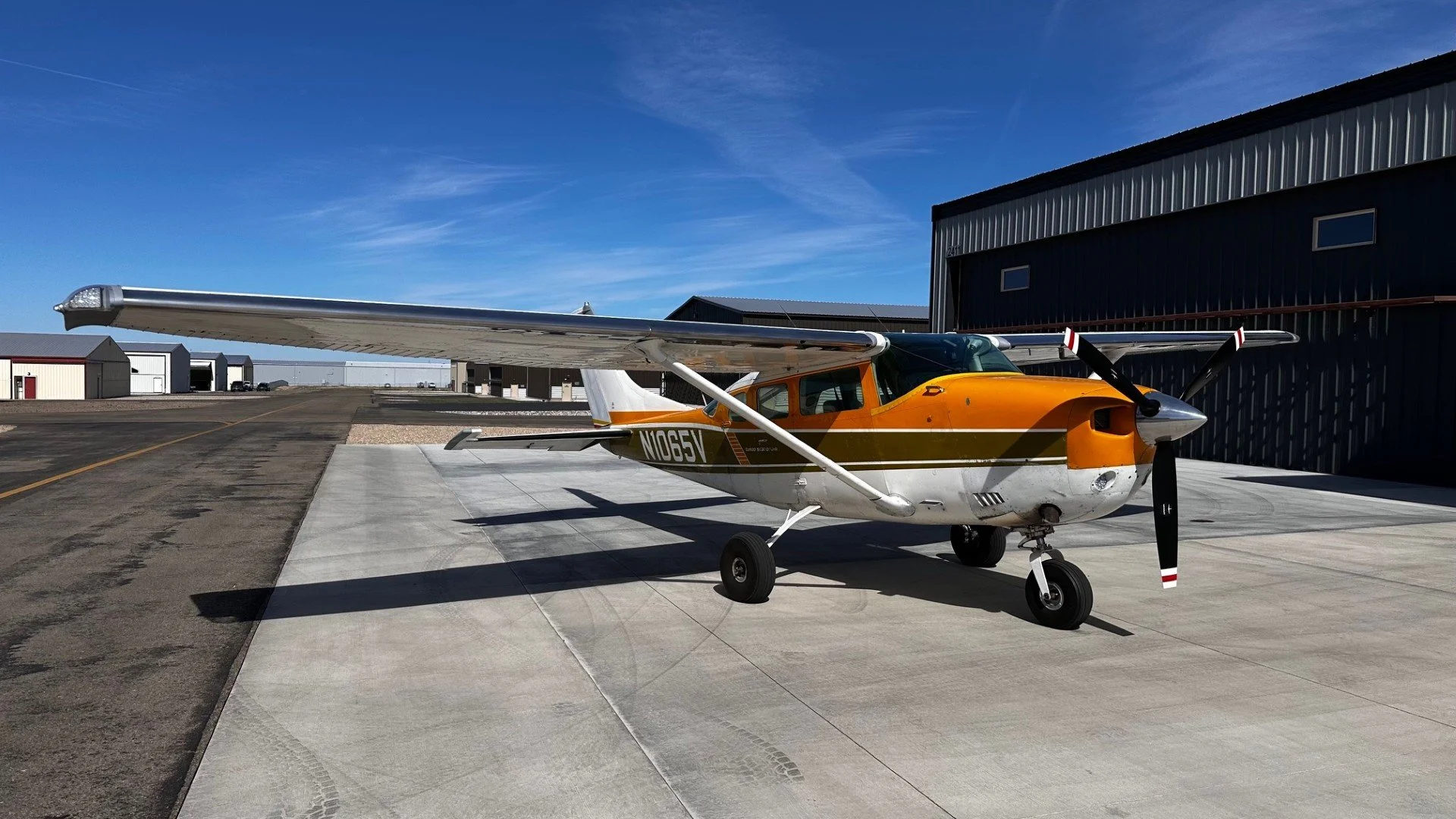

1974 TU206F W/ 310 HP Upgrade
Specifications
airframe
TOTAL TIME 4561.6 (FLYING REGULARLY)
- sn U20602435
- VFR AND IFR PLATFORM
- STRONG REGULAR MAINTENANCE
- COMPLETE LOGS
- 300 HOURS IN LAST 3 YEARS ALONE
- ANNUAL/PITOT/IFR 10/3/2024
Gross Weight, Max take off weight 3600 lbs
empty weight 2176
useful load 1424
Flight Rules IFR w/autopilot
Fuel capacity 80 Useable gal
Airglass Nose Fork 7.0 on Cleveland Nose Wheel
8.5 Main heavy duty Gear Cleveland 3 bolt wheel/breaks
STENE Aviation Sportsman STOL
AERO LED Nav, strobe, beacon, taxi, and Landing Lights w/ all new wiring
Quazar Wingtip strobe/lights
Fuel Cowel Step and Handle
Fronthood V-Brace
Pilot and Co-Pilot Sport Aircraft Seats Standard fully adjustable seats
B.A.S. Inertia Shoulder Harness System for Pilot and Co-Pilot
Door Stewards
Mountain View Aviation Air Flow Vents
Flight Products Inc Door, Window, and Cargo Door Seals from Knots 2U
New Fire Extinguisher 2024
NEW Rosin Visors
NEW upper Airtex interior plastic
NEW wool headliner
Factory cabin Oxygen system, no bottle
Hutch Aviation Strut STC Kit installed to conform with AD 2020-18-01
Shimmy dampener rebuilt new O-ring kit
Avionics Garmin GMA 342 Audio Panel w/6 place intercom
Garmin GTN 650 Nav/Com
Garmin GTX 345 Transponder ADS-B IN/OUT Garmin
Aera 760 panel mount
Garmin Dual G5 PFD/HSI Package with GAD 13 and battery backup
Garmin GFC 500 Autopilot w/trim, pitch and roll servo
Trig TX56A Nav/Com coupled to Garmin GI-106A
GARMIN GI-106A 013-00049-01 VOR/LOC/GS/GPS Indicator coupled to Trig nav/com
JPI 900 primary engine monitor, fuel, electrical
CEIS fuel senders
8 day clock
Rest of "regular" 6 pack
Dual yoke mounted drilled push-to-talk buttons,
Pilot Trim button
engine
TIME SMOH 466.4 (FLYING REGULARLY)
TSIO-520-CCM 310HP
- 300 HOURS ON LAST 3 YEARS
- MAGS ZERO TIME AS OF MAY 2025
- ANNUAL 10/3/2024
- Engine OH (Field Approved to M model)
COMPRESSIONS 10/24 72/68/70/68/70/72
Year Engine OH 1992
New V-band clamp installed 2023
Rebuilt Starter 2023
Electrical 14V
NEW turbo screen and airbox June 2025
NEW McCauley Propeller D3A34C402-C installed 2023 215 hours
stc additions AND UPGRADES
SERIOUS UPGRADES
SPORTSMAN LEADING EDGE STOL INSTALLED BY STEENE AVIATION
AIRGLASS FORK
- 7.00 FRONT 8.50 MAINS
STEEN AVIAITON WING TIPS
AERO LED QUASAR LIGHTING WITH WIG WAG
ALL NEW TIPS ON WING, HOZ STABILIZER AND VERTICAL RUDDER
IFR AVIONICS PACAKGE - GARMIN DUAL G5, 345, 650, 760, 500 AUTOPILOT, FLIGHTSTREAM 510,ADSB IN/OUT
JPI 900 PRIMARY ENGINE DISPLAY
NEW INTERIOR PLASTICS AND WOOL HEADLINER
FUELING STEPS AND HANDLES
BAS SHOULDER HARNESS WITH INTEGRATED STRAPS TO BELT
PILOT COPILOT SEATS REDONE
310HP UPGRADE TO TSIO-520M NO RESTRICITONS
SOROS VENTS
USB PORTS LEFT AND RIGHT
CAMERA PORT MIDDLE ROW PILOT SIDE
RECENT MAINTENANCE
- NEW IGNTION SWITCH AND KEYS 6.25
- OH MAGS AND NEW HARNESS 6.25
- TURBO DUCTS REPLACED 6.25
- FRONT DAMPNER SHIMMEY KIT INSTALLED 6.25
- INTERIOR PLASTICS REPLACED 6.25
- NEW WOOL HEADLINER 6.25
- REAR TRIM ACUATOR REPLACED 6.25
- ROSEN SUN VISORS INSTALLED 6.25
- WEIGHT AND BALANCE COMPLETED 6.25
- REPLACED ALL LIFTERS/GASKETS 6.25
- OH MAGS 5.25
- RUDDER REPLACED WITH BALANCED PART 3.25
- HUTCH AVIATION STRUT/DOOR KIT STC 3.25
- DOOR STEWARD 10.24
- ALTERNATOR BELT 10.24
- SOROS VENTS 10.24 -
